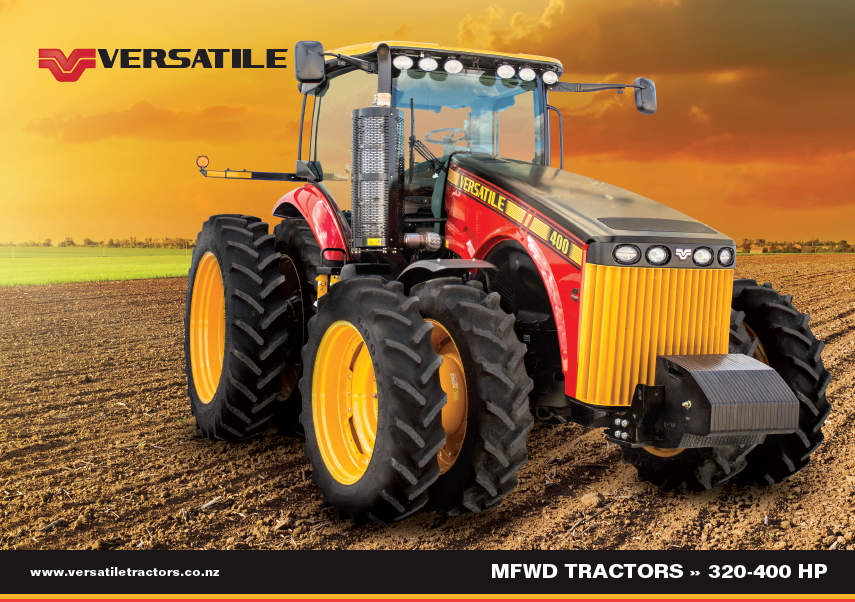

Model 320/400
The Versatile front-wheel assist tractor is designed to provide a new level of comfort, power and visibility. For almost 50 years Versatile tractors have been built for reliability, durability and serviceability and the new era of tractor models continues to uphold these standards while increasing functionality and operator convenience.
- Sloped hood increases forward visibility
- New, roomy cab with 4.22 cu. m (149 cu. ft.) of volume and improved features
- Improved control comfort with armrest control
- Cummins engine technology
- Headland Management System

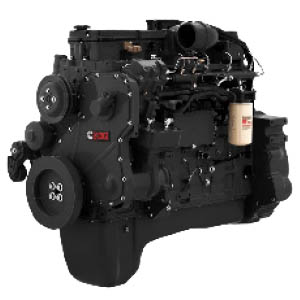

Engine
With a choice between either the QSC 8.3-litre (320 FWA), or the QSL 9.0-litre (400 FWA), both engines achieve Tier 3 emissions compliance, ensuring productivity and power are combined with fuel efficiency. Using Cummins advanced, in-cylinder technology, the QSC and QSL maintain performance, dependability and durability while operating cleanly and efficiently. Advanced electronics enhance engine performance, with better torque and faster throttle response. The Cummins engines have a history of reliability and durability in the agriculture industry, known for its cold start ability and smooth operation, including less engine noise and vibration which means less operator fatigue.

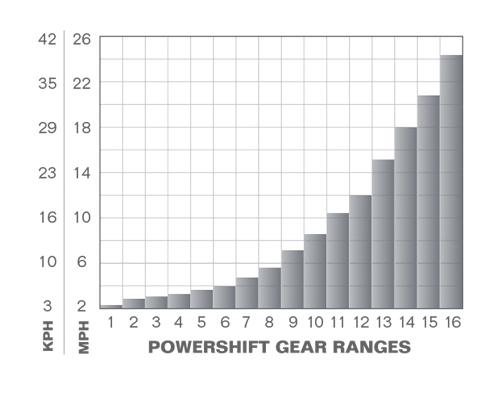

Transmission
Upshifting and downshifting is as easy as the push of a button. Versatile FWA tractors are equipped with a 16 x 9 full powershift transmission that has been refined for smooth shifting, particularly when under load. An innovative design that features large helical cut case hardened gears on roller bearings ensures the operation is durable, smooth and quiet.
Hydraulics
The closed centre load-sensing hydraulic system provides ample capacity for implements that demand high hydraulic flow by providing pressure and flow on demand. When no hydraulic power is required, the system goes into low-pressure standby to conserve energy, providing more power at the drawbar. Electro-hydraulics are standard and are ergonomically designed for both comfort and convenience. Finger-tip controls manage the hydraulic functions and hydraulic flow is increased or decreased using the on-screen display.

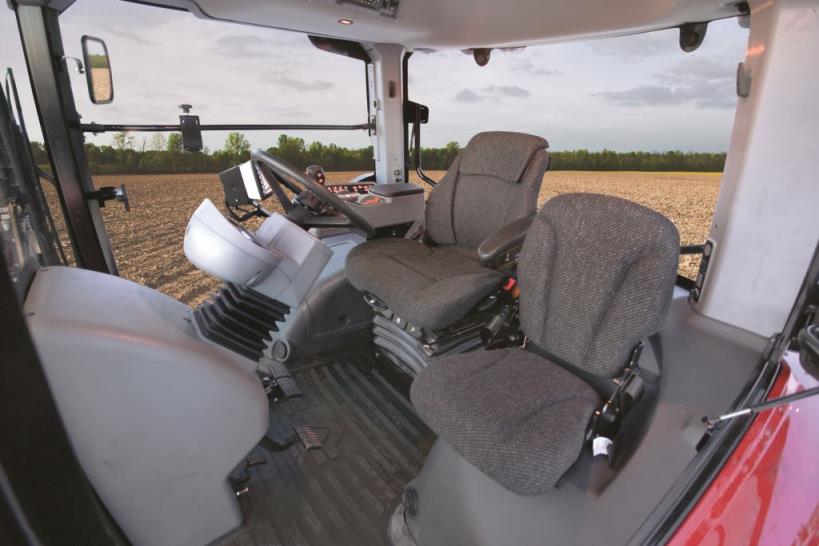

Cabin
The Versatile MFWD tractors offer the largest cab in its class. The cab interior is 26% larger than previous models with a total volume of 4.22 cu. m (149 cu. ft.). The total area of usable window glass is 6.83 sq. m (73.5 sq. ft.) offering an expansive view. The new cab and hood design also increase forward visibility over the previous generation of Versatile MFWD tractors. New eyeball air vents and floor venting have been added to increase operator comfort and reduce window fogging.
Not only is the new cab more spacious, it is also more functional. A new right-hand console provides fingertip control of all the tractors working functions. A 7" display screen in the 320, or a 12” display screen in the 400, along with four cup holders, six 12-volt outlets, 110v AC/5-volt USB ports, and a top of the line training seat further enhance the functionality and comfort on all Versatile MFWD tractors.
Specifications
|
320 FWA
|
420 FWA
|
Engine
|
Cummins QSC
8.3 Litre Displacement (506cu. In.)
Peak 320 HP @ 2100 rpm
|
Cummins QSL
9.0 Litre Displacement (549cu. In.)
Peak 400 HP @ 2100 rpm
|
Front Axle
|
Hydrostatic Power Steering
Front Weights 24 x 30kg
|
Powershift Transmission
|
16 Forward Speeds / 9 Reverse Speeds
Sequential shift, auto shift, pulse shift
Wet Multi Disc Clutch
|
Operator Environment
|
Side Mounted Exhaust
Telescopic Rear View Mirrors
Air Suspension Comfort Seat
7” Monitor
|
Side Mounted Exhaust
Telescopic Rear View Mirrors
Air Suspension Comfort Seat
12” Monitor
|
Drawbar and Hydraulics
|
Load Sensing Closed Centre Hydraulics (208 l/min)
Lift Capacity 8,410 kg
540/1000 PTO
|
Weights and Dimensions
|
Length with Weights 6401 mm
Overall Height 3396 mm
Fuel Capacity 643 Litres
|
Warranty
|
2 years or Max 2000 hours from Installation - Plus extra 3rd year on Transmission
|
